Lead Forming Equipment



Axial Cut and Form

Radial Cut and Form

Tab Pack Cut and Form

DIP Cut and Form

Wire Former

Short Form Catalog

Axial Cut and Form^

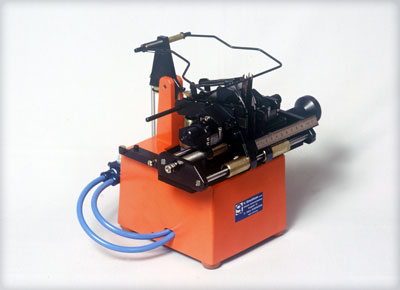

CO34 Axial Cut and Form

Cutting & Bending Machine for Horizontal Mounting of Axial Components



Available Form



Machine Data

Production Rate:

500 - 1,000 pcs/hr

Dimensions: mm (inches)

203L x 203W x 280 H (8.0"L x 8"W x 11.0"H)

Pneumatic:

4-6 bar (60-80 psi)

CO42 Axial Cut and Form
Cutting & Forming Machine for Horizontal Mounting of Axial Components



Available Form

Axial Component forms



Model CO42

The Streckfuss models C042 and C042/S are designed to cut and form the leads of axial components. A variety of form configurations can be achieved through the use of interchangeable die sets, which can be changed in less than 5 minutes. The set up adjustments are simple to make and secured to provide accurate forming on every component.

Machine Data

Production Rate:

500 - 1,000 pcs/hr

Dimensions: mm (inches)

508 L x 304 W x 228mm H (20.0" L x 12.0" W x 9.0" H)

Pneumatic:

4 - 6 bar (60 - 80psi)

CO43/E Axial Cut and Form
Cutting and Bending Machine for Horizontal & Vertical Mounting Axial Components

Available Forms



Vertical





Horizontal

Model CO43/E

The Streckfuss model CO43/E is designed to form axial leaded components for both horizontal and vertical mounting. Fully adjustable, a wide variety of form shapes are possible through the use of interchangeable die sets and mounting kits. Tooling changes can be made quickly and easily. All set up adjustments are simple to make and secured to provide accurate forming of each component lead.

Machine Data

Production Rate:

7,000 pcs/hr

Dimensions: mm (inches)

600L x 440W x 420H (24.0 L x 18.0"W x 17.0" H)

Electrical:

220v, 50hz, 0.12Kw  (110V, 60hz, 0.12Kw)

CO44 & CO44/S Axial Cut and Form
Cutting & Forming Machine for Vertical Mounting of Axial Components

Available Forms



Model CO44 & CO44/S

The Streckfuss models C044 and C044/S are designed to cut and form leads of axial components for vertical mounting. A variety of form shapes are available through the use of interchangeable die sets. The set up adjustments are simple and secured to provide accurate forming of every component lead.

Machine Data

Production Rate:

500 - 1,000 pcs/hr

Dimensions: mm (inches)

458L x 203 W x 203 H  (18.0" L x 8.0" W x 8.0"H)

Pneumatic Requirement:

4 - 6 bar (60 - 80 psi)

Radial Cut and Form^

CO52/B Radial Cut and Form
Cutting & Forming Machine for Loose Radial Components

C052B Radial Cut and Form Machine

Available Forms



ModelCO52/B

The Streckfuss model C052/B is designed to cut and form radial components with 2 leads.   A variety of form shapes are possible through the use of interchangeable die sets.   The triangular shaped center die allows components with lead spans from 5.08mm to 17.25mm (.200" to .680") to be processed on a single die.  Adjustments are provided for the placement and exaggeration of the form.  Easy to operate, the C052/B offers an economical solution to quality forming of loose, radial components.

Machine Data

Production Rate:

500 - 1,000 pcs/hr

Dimensions: mm (inches)

254L x 254W x 89H (10.0" L x 10.0" W x 3.5" H)

Pneumatic:

4 - 6 bar (60 - 80 psi)

Machine Data

Production Rate:

500 - 1,000 pcs/hr

Dimensions: mm (inches)

254L x 254W x 89H (10.0" L x 10.0" W x 3.5" H)

Pneumatic:

4 - 6 bar (60 - 80 psi)

CO53
Universal Lead Cutting machine



Standard Pre-drilled plate with custom options
Model CO53

The Streckfuss model C053 is designed to cut the leads of loose radial components with lead diameters up to 0.8mm [.032"]. The machine utilizes a cutting and shear plate combination and is supplied with pre-drilled hole patterns. Standard cut length is 3.0mm [.120"], other optional. Foot pedal operated, the C053 provides a simple, inexpensive solution to cutting loose radial leads.

Machine Data

Production Rate:

500 - 1,000 pcs/hr

Dimensions: mm (inches)

304L x 127W x 115H (12.0" L x 5.0" W x 4.5" H)

Pneumatic:

4 - 6 bar (60 - 80 psi)

CO55
Universal Lead Cutting machine

Standard Pre-drilled plate with custom options
Model CO55

The Streckfuss model C055 is designed to cut the leads of loose radial components with lead diameters up to 0.8mm (.032). The machine utilizes a cutting and shear plate combination and is supplied with a pre-drilled hole pattern. Standard cut length is 3.0mm (.120). Thumb or foot switch operated, the C055/P provides a simple, inexpensive solution to loose radial leads.

Machine Data

Production Rate:

500 - 1,000 pcs/hr

Dimensions: mm (inches)

255L x 130W x 120H (10.0" L x 5.0" W x 4.5" H)

Pneumatic:

6 - 8 bar (60 - 80 psi)

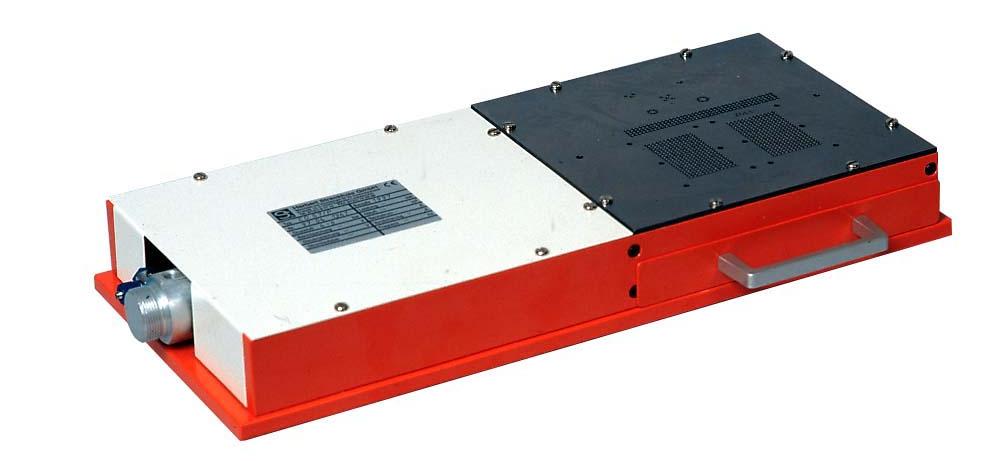

CO57 Universal Lead Cutting machine

Standard Pre-drilled plate with custom options

The Streckfuss model C057 is designed to cut the leads of loose radial components with lead diameters up to 1.0mm [.040"].  The machine utilizes spring-loaded cutting blade traversing a top shear plate to perform the cutting action.  The standard shear plate is supplied with pre-drilled hole patterns at a thickness of 3.0mm [.120"].   Foot pedal operated, the C057 provides a simple, economical solution to cutting larger lead diameter radial loose components.



Production Rate:

500 - 1,000 pcs/hr

Dimensions: mm (inches)

430L x 203W x 76H (17.0" L x 8.0" W x 3.0" H)

Pneumatic:

6 - 8 bar (60 - 80 psi)

CO58 Universal Lead Cutting machine
      Standard Pre-drilled plate with custom options
Model CO58

The Streckfuss model C058 is designed to cut the leads of loose radial components with lead diameters up to 2.54mm [.100].  The machine utilizes a large mass cutting blade traversing the top shear plate.  Supplied with a blank, unhardened shear plate a wide variety of custom plate designs are available including pocketed, slotted, and multi-leveled.  Foot pedal operated, the C058 provides the solution for hard-to-cut, large-leaded, loose radial components.

Machine Data
Production Rate:500 - 1,000 pcs/hr
Dimensions: mm (inches)229W x 762L x 115H (mm) [9.0" W x 30.0" L x 4.5" H]
Pneumatic:6 - 8 bar (60 - 80 psi)

Workable Area:

178mm x 178mm [7.0" x 7.0" ]

CO69/G
Cutting & Forming Machine for Taped Radial Components



Available Forms





Model CO69/G

The Streckfuss model C069/G is designed to form and cut taped radial components with 2 or 3 leads. With a full range of adjustments the interchangeable die sets can be tailored to each application. Their modular design makes tooling changes quick and easy. With a progressive die arrangement a wide variety of form configurations are possible. Versatility, reliability, and quick changeover make the C069/G a beneficial addition to any production line.

Machine Data

Production Rate:

7,000 pcs/hr

Dimensions: mm (inches)

1100L x 550W x 500H (43.5 L x 21.5W x 20.0H)

Electrical:

220v, 50Hz, 0.12Kw  (110V, 60Hz, 0.12Kw)

CO92 Radial Cut and Form
Universal Cutting and Forming Machine for Taped Radial Components

 C092

Available Forms

Model C092

The Streckfuss model C092 has been developed to process taped components with hole pitches of 12.7 mm or 15 mm with one machine. To eliminate any kind of inconsistencies due to variances in taping, this machine is fitted with a touch-tool that will verify the cut length. The machine was developed with two processing units for multiple die sets. The die inserts can be exchanged very quickly. Because of the dual processing-units a wide range of bending and stamping forms can be processed

Machine Data

Production Rate:

max. 10.000 pcs/h

Dimensions: mm (inches)

1100(with safety-shut-down) x 450 x 500 (43.5" L x 19.5" W x 19" H)

Electrical:

230v, 50Hz, 110w  (110V, 60hz, 110w)

Pneumatic:

6 bar (60 - 80 Psi)

CO93



Available Forms




Model CO93

The CO93 was designed to produce a "J" bend to one lead of a component that has polarity. CO93 incorporates a touch tool that ensures a specific lead length (+/- .1mm) even if the components are not taped to an exact tolerance. Optionally, the CO93 offers a C Tester that can test the components for correct polarity prior to the forming station and remove them if they fail. Because the CO93 only accepts components on tape, either reeled or ammo pack formats are acceptable. Also because of its flexibility, the CO93 allows the processing of components taped on 12.7 or 15mm spacing by using easy-to-change tape guides and tools.

Machine Data

CO94
Automated Cutting and Forming Machine for Radial Leaded Components



 Available Forms



Model CO94

The C094 was specifically designed for an efficient way of cutting radial taped components. Additionally, the system can be configured for 90 bending or forming of radial components. (For bending and forming specifications please contact us) Because the C094 only accepts components on tape, either reeled or ammo pack formats are acceptable. Also because of its flexibility, the C094 allows the processing of components taped on 12.7 or 15mm spacing by using easy to change tape guides and tools.

Machine Data

Production Rate:

5,000 pcs/hr

Dimensions: mm (inches)

500 W x 400 L x 500 H (20" W x 16" L x 20" H)

Electrical Requirement:

220v, 50/60Hz, 0.12Kw (110V, 50/60Hz, 0.2Kw)

Tab Pack Cut and Form^

CO67 Tab-Pack Cut and Form
Cutting & Forming Machine for Horizontal & Vertical Mounting of Tab-Pack Components

 C067

 Available Forms




Model CO67

The Streckfuss model C067 is designed to cut and form tab-pack components with 3 to 7 leads for vertical or horizontal mounting. A variety of form shapes are available through the use of interchangeable die sets and feed magazines. The feed magazines are configured for hand or tube feeding. Tooling changes can be done quickly and easily making the C067 ideal for high mix production environments.

Machine Data

Dimensions: mm (inches)

300L x 300 W x 400 H (12" L x 12.0" W x 16.0" H)

Electrical Requirement:

220v, 50/60Hz, 0.12Kw  (110V, 50/60Hz, 0.12Kw)

CO68 Tab-Pack Cut and Form
Cutting & Forming Machine for Horizontal & Vertical Mounting of Tab-Pack Components



Available Forms





CO68

The Streckfuss model C068 is designed to cut and form tab-pack components with 3 to 7 leads for vertical or horizontal mounting. A variety of form shapes are available through the use of interchangeable die sets and feed magazines. All feed magazines are configured for hand or tube feeding. Tooling changes can be done quickly and easily making the C068 ideal for high mix production environments.

Machine Data

Production Rate:

3,600 pcs/hr

Dimensions: mm (inches)

600 L x 450 W x 600  (24" L x 18" W x 24" H)

Electrical:

220V, 50Hz, 0.12 Kw (110V, 60Hz, 0.12 Kw)

CO69 S  Tab-Packs

Available Forms





Model CO69 S

The Streckfuss model C069/S is designed to cut and form tab-pack components with 3-23 leads for vertical or horizontal mounting. The feed magazines and die sets are modular in design to allow quick set up changes. All cutting and forming parameters are manufactured to customer specification.

Production Rate:

3,600 pcs/hr

Dimensions mm (inches)

600L  x 600W x 450H (23.5" L x 23.5" W x 18.0" H)

Electrical:

220V, 60 Hz, 0.12 Kw  (110V, 50/60 Hz, 0.12 Kw)

Dual Inline Package Cut and Form^

AO75 Dual Inline Package

Lead Straightening and Cutting Machine for DIP Components

 AO75

 Available Forms

Model AO75

The Streckfuss model A075 is designed to straighten cut the leads of dual in-line components utilizing a tube-to-tube feeding configuration. Fully adjustable, the A075 requires no die changes, which allows a wide range of component sizes to be processed quickly and easily. The cut length and lead span adjustment are displayed on a digital panel meter and the operating speed is infinitely variable.

Machine Data

Production Rate:

3,500 pcs/hr

Dimensions: mm (inches)

458 L x 356W x 381H (18.0" L x 14.0" W x 15.0" H)

Electrical:

220v, 50Hz, 0.12Kw (110V, 60Hz, 0.12Kw)

AO75/Ri Dual Inline Package
Lead Straightening Machine for DIP Components

 A075RI

Available Forms

Model AO75 Ri

The Streckfuss model A075/Ri is designed to straighten the leads of dual inline components utilizing a tube to tube feeding configuration. Fully adjustable, the A075/Ri requires no die changes, which allows a wide range of sizes to be processed quickly and easily. The lead span adjustment is displayed on a digital panel meter and the operating speed is infinitely variable

Machine Data

Production Rate:

10,000 pcs/hr

Dimensions: mm (inches)

458L x 356 W x 381 H (18.0 L x 14.0"  W x 15.0" H)

Electrical:

220v, 50Hz, 0.12Kw (110V, 60Hz, 0.12w)

Special Application Lead Formers^

CO60 Special Application Wire Former
Automated cutting and forming machine for jumper wires

Available Forms


Model CO60

The Streckfuss model C060 is designed to cut and form 20 to 22 gauge jumper wires.  The machine has an adjustable center-to-center distance and uses interchangeable die sets to vary the cut length.  The wire straightener, feed clamp and backlash assembly combined with an adjustable feed stroke produce a precise jumper wire every time.

Machine Data

Production Rate:

7,000 pcs/hr

Dimensions: mm (inches)

915 L x 254W x 305H (36" L x 10" W x 12" H)

Electrical Requirements:

220v. 50/60Hz, 0.25Kw  (110V, 50/60Hz, 0.25Kw)

Specifications contained in this document are subject to change without notice
